The US-Smart is a unique worldwide device due to the BLUETOOTH connectivity and its ANDROID environment.

This ultrasonic device is powered supply via battery Li-Ion.

His main quality is its small size and its ‘ready to use’ concept.

The US-Smart has been created to simplify the NDT controls.

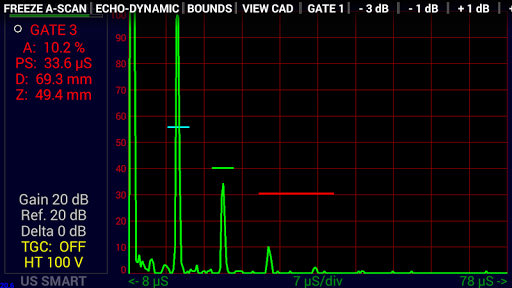

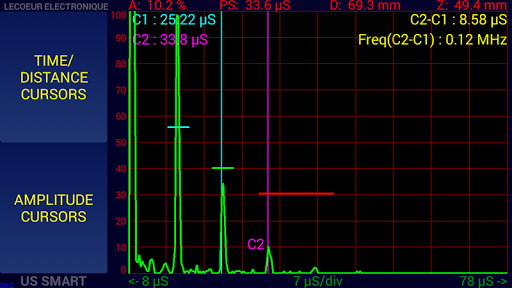

The transmitter can generate pulses with a voltage level and a width programmed by the user. A low noise preamplifier combined to a VGA gives a gain range between 0 and 80 dB, a DAC curve is also available. A 12 bits analog digital converter with a sampling frequency of 80 MHz is used to digitize ultrasound signals.

The device has 2 working modes : Transmission or Reflection.

Applications :

> None Destructive Testing

> Trainings

> Teaching

> Android environment

Features :

> Bluetooth

> Android System

> Battery Li-Ion (capacity : 2 600 mAh)

> Battery life : 8 hours

> Available connectivity up to 8 m

> Ultralow noise preamplifier : 0.74 nV/√Hz

> - 6 dB bandwidth : 540 KHz to 18 MHz

> High voltage transmitting pulses

> 50 Ω load drive

> Digitizer 12 bits at 80 MSPS

> Programmable gain : 0 to 80 dB

> DAC curve

<< Caution >> : The US SMART software program downloaded from google play is a demo software.The working one is sold with the hardware device at www.lecoeur-electronique.com
