The ray tracing 'Schneider's Simple Raytracer' (ssR) gives you the ability to simulate optical systems easily and quickly. You can use the app in the education, studies or in the research and development to simulate various problems such as chromatical or spherical aberration as well as their compensation.

【免費工具App】Schneiders Simple Raytracer-APP點子

You are also not limited to the paraxial region or thin lenses.

This app is the result of a lecture as part of a project (th-wildau, photonics, head: Prof. S.Schrader, lecturer: Dr. J.Bauer).

With ssR you can simulate optical systems with lenses, apertures and mirrors.

【免費工具App】Schneiders Simple Raytracer-APP點子

This algorithm uses vector calculus and supports both refraction and reflection of radiations. The refraction index can be fixed or calculated in accordance with wavelength and 11 different material (BK7, SF5, fused silica, ...).

【免費工具App】Schneiders Simple Raytracer-APP點子

(Attention! False color! The colors of rays are not the real color of the wavelength!)

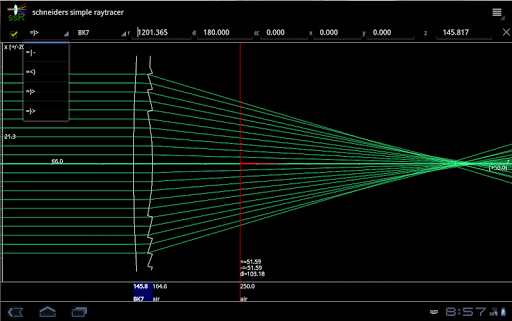

In ssR you have the possibility to view your simulation in three 2D diagrams (x/z-, y/z- and x/y- plane). Planes and rays can be added, moved and modified in a 2D-diagram ...'on the fly' . The most interesting values ​​and the local rays distribution are shown at the image plane.

【免費工具App】Schneiders Simple Raytracer-APP點子

You can save or load your generated optical systems in/from a textfile.

small functional overview:

【免費工具App】Schneiders Simple Raytracer-APP點子

 - Switch --- , === : inserts a ray (---) or pencil of rays (===) in current diagram; finger motion y/x: y- (or x-) position of the ray/s; finger motion z: angle of the ray/s

【免費工具App】Schneiders Simple Raytracer-APP點子

 - Switch, =|- , =(> , =<) : inserts a new surface in current diagram; finger motion z: z-position of the surface, finger motion y/x: modify diameter or radius of the surface; =|-: aperture, =(>: refraction, =<): reflection

in Lab mode:

【免費工具App】Schneiders Simple Raytracer-APP點子

 - diagram: values of first axis sections, axis labeling with scales disposition (+/-)

【免費工具App】Schneiders Simple Raytracer-APP點子

 - at image plane: + : max value of the image, - : min value of the image, d: size (deltaY/deltaX)

【免費工具App】Schneiders Simple Raytracer-APP點子

- at Instrument bar: z-value of surface, focal length (left/right), material/refractive index

【免費工具App】Schneiders Simple Raytracer-APP點子

 - hold a point with one finger and move with another finger: zoom in or zoom out of the graph

【免費工具App】Schneiders Simple Raytracer-APP點子

 - touching and sliding on the y/x-axis: modify single ray/s x/y-positions, finger movement z: changes angle of ray

【免費工具App】Schneiders Simple Raytracer-APP點子

 - touching and sliding over the instrument bar (at the ground, parallel to the z-axis) move the elements on the z-axis,

【免費工具App】Schneiders Simple Raytracer-APP點子

 - tap the z-position of a surface @ instrument bar: change material options

【免費工具App】Schneiders Simple Raytracer-APP點子

- long click on a buttons: modify settings

.................................................. .....................................................................

【免費工具App】Schneiders Simple Raytracer-APP點子

Please keep me informed about problems, annoyances and suggestions ;).

Please tell me what is missing in the raytracer:

【免費工具App】Schneiders Simple Raytracer-APP點子

https://docs.google.com/forms/d/17eYaAoM5-WEZacDFdrloRU3DYmuDKbvxsrACtFfZLVE/

Made by physicists

【免費工具App】Schneiders Simple Raytracer-APP點子

Made in Europe

【免費工具App】Schneiders Simple Raytracer-APP點子

Made for all

This material is licensed under Creative Commons License Attribution - ShareAlike 4.0 International. To view a copy of this license, visit http://creativecommons.org/licenses/by-sa/4.0/ .
