PIPEFIT INCH|生產應用線上App不用買

PIPEFIT is useful for Managers, Engineers, Designers, Site supervisors in various industries ranging from Oil & Gas, Petrochemical, mining, renewable energy etc

PIPEFIT is developed keeping following professionals in mind with a goal of providing easy access to Pipe, Valves and Fittings dimensions in their mobile platforms. This application is specifically targeted for PIPING PROFESSIONALS like draftsman, designers and Engineers who need to prepare Engineering sketches, drawings. It is useful for senior engineers and Managers for review /checking purpose.

Procurement/ Quality Control / Inspection /Store etc are other disciplines which will benefit from this application.

This product is also useful for other disciplines like process, instrumentation etc who will use valve , pipe and fitting dimensions pressure drop calculations or during interface management respectively.

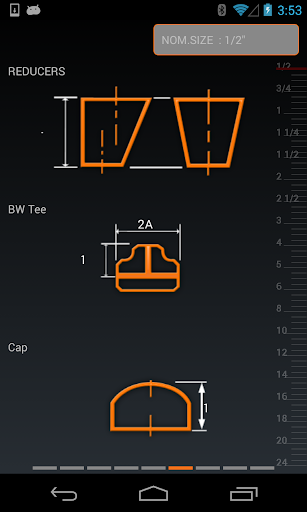

This APPLICATION is designed user in mind. From menu screen you can launch application and start using it straightaway. You can select variables like Nominal size, Rating, Schedule etc from side scroll menu or drop down menu.

STANDARDS USED ARE AS PER ANSI/ASME

FOR PIPES : B36.10 & B36.19

FOR FLANGES- B16.5

FOR VALVES FLANGED- B 16.10

FOR SW & SCRD – B16.11

OTHERS- MANF STD

FOR BOLTINING- B16.5

Nominal Sizes are in Inches

Bolt Nos & Dia are in Inches and are shown near Machine Bolt head

All other Dimensions in Millimeters

Pipe weight Empty W in lb/ft

Pipe thickness = t inches

Flange thickness is inclusive of Raised Face thickness.
