Link-WF for Android

Link-WF allows user to access and view the data from GSX4-WF and GSX8-WF Data Logger in a user-friendly interface over Wi-Fi network. Operation can be no more than tap the picture or pinch on iPad screen.

The app replaces the expensive and proprietary HMI monitoring system, accesses the data from data logger over wireless network and display in chart or meter graphics.

Direct Mode: data from data logger directly

[Applications]

Production line network real time monitoring

Environmental control

Factory automation control

Industrial Equipment Monitoring

Cold Chain Control

Wireless Data Monitoring System

[License]

Unregistered: Link-WF supports limited features in direct mode

Licensed Key Registration: Link-WF supports full function in direct mode

Registered User extra features:

* HMI background picture can be imported by user, and more pictures can be stored.

* Split Screen provides max. 3x3 channels display.

* Line Chart gives user more choices of chart styles for different applications.

* Data Listing allows wider range of period for display.

* More channels and data loggers are supported simultaneously

Data Presentation Graphics:

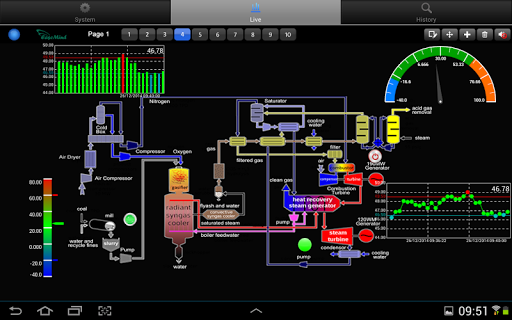

1. HMI (Human Machine Interface)

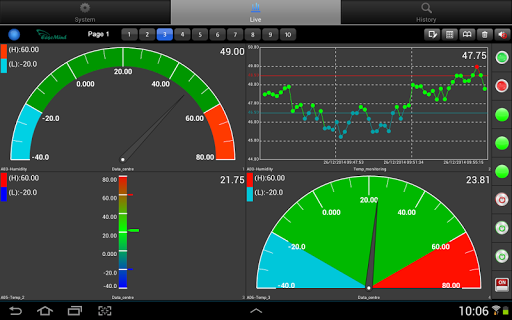

2. Split Screen

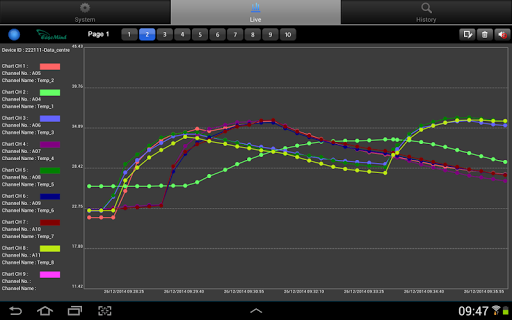

3. Line Chart

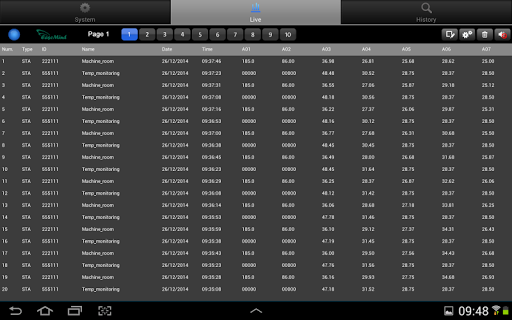

4. Data Listing

When will data be delivered to Link-WF?

1. Active Mode: On-schedule data upload from data logger in every interval

2. Passive Mode: Data upload upon interval request

Alarm will be triggered when incoming data is beyond the user preset range.

Keywords: Wi-Fi Data Logger, GSX4, GSX8, Link WiFi
