Operator panel for various industrial PLC's. Communication over Bluetooth, WiFi or mobile internet with the protocols COMLI, Modbus/TCP (Class 0 and 1), Modbus RTU class 1, SattBus COMLI or Siemens Fetch/Write. Can also run on stationary devices such as media player and cabled Ethernet connection.

HMI Droid is a further development of the HMI program LEDpanel for Windows and is a supplement or alternative to traditional SCADA systems and operator panels. It handles digital and numeric variables and have smooth navigation between panels using buttons or by swipe .

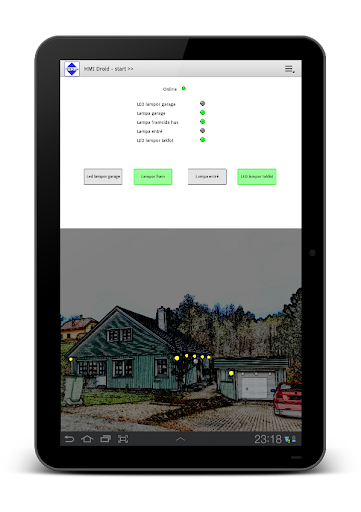

HMI Droid is also great to use for home automation with PLCs that have eg Modbus/TCP protocol is implemented to remotely control and monitor lighting, ventilation, heating etc in the residence or holiday home.

Advantages:

Excellent technical support.

Free updates.

Long expected life cycle.

Graphic HMIs with touch function can be created in minutes using free development tool.

Virtually unlimited number of panels, objects and variables.

Does not require any third-party services.

Genuine native app, not based on neither HTML nor OPC technology.

Features:

Parameters for communication such as IP address, port number, protocol, etc. can be specified per panel.

Automatic polling of all variables displayed in the current panel, no need for separate tag list.

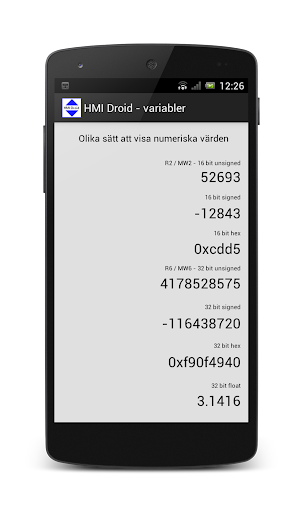

Many formats for numeric variables such as 16 and 32 bit integer, unsigned, hex, ASCII, float (IEEE 754), etc.

Prioritized event-driven transfer to the controller.

Panels are edited in the measurement unit dp (Density Independent Pixels).

Life bit for monitoring panel in the the controller. (Function similar to coordination area in Siemens S7.)

Auto-scaling allows for using the same panels on smartphones, tablets and other devices.

Numeric variables can be displayed as predefined text for example alarms, sequence steps etc.

Detailed diagnostics of connection and communication.

Variable areas for system and local variables.

Possibility of automatic return to the start panel after some time of inactivity.

Selectable order for high and low words of 32-bit variables in the Modbus protocol.

Poll interval can be set do save data traffic or battery.

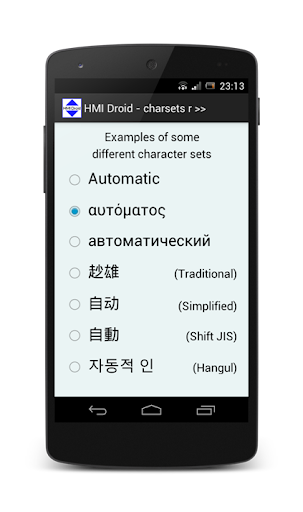

Support for Greek, Turkish, Baltic, Central European, Eastern European, Cyrillic, Japanese (Shift JIS), Chinese (GB2312, BIG5) and Korean character sets.

Implemented protocols in the current version: (more to come e.g. Siemens S7 Communication / ISO on TCP)

COMLI: Message 0, 1, 2, 3 and 4. Addresses register 0 - 3071 and flags 0 - 37777 (octal).

Modbus/TCP: Class 0, Function 3 and 16. Reads and writes 20,000 holding registers.

Modbus/TCP: Class , Function 1 , 2 and 5. Reads and writes up to 65,536 in-and outputs.

Modbus RTU: Class 0 and 1.

SattBus COMLI i.e. COMLI SattBus over Ethernet.

Siemens Fetch/Write: Reads and writes variables in data block 1 to 255 between bytes 0 and 4095 and byte 0 to 127 in variable areas for inputs, outputs and memories.

System requirements:

Android 3.2 or later.

External storage must be available.

Windows PC for editing panels.

Link to download the free development tool for the PC that is needed to make the panel files to be run by HMI Droid:

http://www.idea-teknik.com/en/hmi_droid_download.html

Link to the manual:

http://www.idea-teknik.com/en/hmi_droid_manual.html

Link to version history:

http://www.idea-teknik.com/en/hmi_droid_version_history.html
