FE-Tab is a finite element analysis application that may be used to carry out structural finite element analyses on smart phones and tablets.

This version of Fe-Tab allows for linear static analysis of

* 1 dimensional truss structures

* 2 dimensional truss structures

* 1 dimensional beams (pure bending)

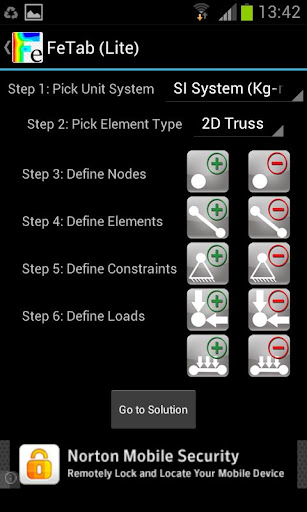

Fe-Tab uses an intuitive interface to allow you to follow the step by step instructions to easily and efficiently build and solve a finite element model.

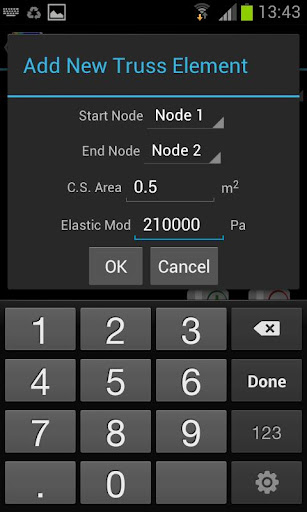

- 1D and 2D Truss elements

- 1D beam element

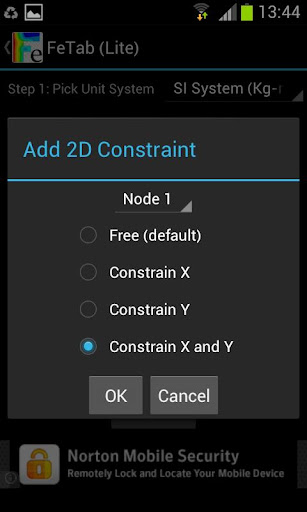

- Constraints allowed on each node

- Point loads allowed on each node

- Moments allowed on each node for beam elements

- Distributed force on beam elements

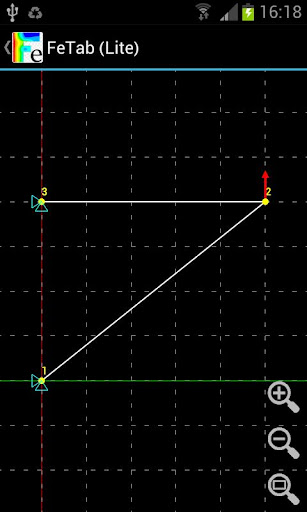

- Graphical display of FE model showing constraints/loads

- Pan and Zoom the graphical display

- Save and load FE models

- Four examples included

A note on errors:

If you specify an unrealistic finite element model then you can cause any finite element program to crash.

*Not specifying enough constraints (under-constraining) can result in unintended internal mechanisms or rigid body motion which will cause an error.

*Elements with a zero stiffness or I-value or elements that have a large stiffness relative to the rest of the model will also cause errors.

*These errors occur due to the matrix algebra used to solve the FE model and can be avoided if you try to stick to realistic values and scenarios.

*Please see our website for more details: www.jion.ie
