Vision Pilot Features:

1. Camera Tilt Control

Swipe up to pitch camera upwards and down to pitch downwards.

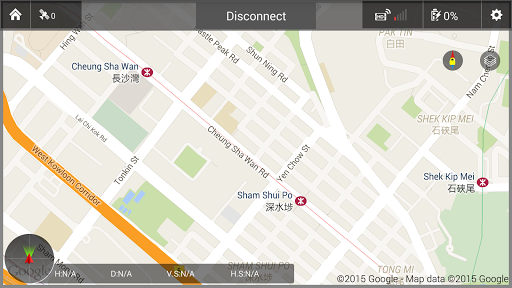

2. Map and FPV Display

- Full FPV – FPV view in full screen.

- Full Map – Display Full map screen.

- FPV in full screen and map at lower right corner

- Map in full screen and FPV view at lower right corner.

- Shortest path(Green line shown in the map view) between home and aircraft point.

Navigation Mode: (only for device has compass sensor)

- Aircraft navigation mode: map is zoom in/out and rotated based on the direction the aircraft is traveling in. Aircraft appears stationary while the map underneath it appears to be moving and rotating.

- Pilot navigation mode: map is zoom in/out and rotated based on iDevice bearing.

- Wifi Orientator: help orients the wifi range extender towards your aircraft to maintain wifi signal.

3. Flight Parameters

Distance: Horizontal distance from home point.

Altitude: Vertical distance from home point.

Speed: Vertical / Horizontal flying speed.

4. Wi-Fi Signal Intensity

Indicates camera is connected to your mobile deviceand Wi-Fi is working normally.

The connection between the camera and mobile device may fail if Wi-Fi signal strength is low.

5. Aircraft Battery Level

(1) When available power is more than 30%, the battery icon is in white. This battery level is appropriate for flight.

(2) When below 30%, the battery icon will turn red. This battery level is low for flight. It is recommended that you fly your PHANTOM 2 VISION home and land it as soon as possible.

6. Aircraft GPS Status

Displays GPS status and the number of available satellites.

7. Wifi Booster (only for Vision+)

One click enhances the WiFi Video Reception Performance. It will boost the output signal up to 100% from both the Range Extender and Transmitter to increase the FPV range.

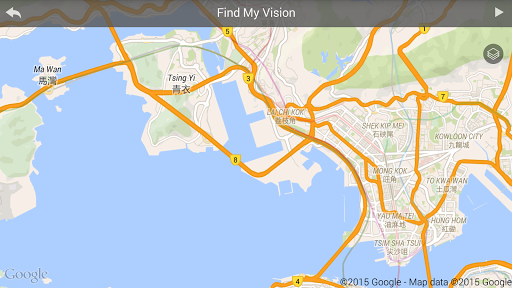

8. Find My Vision

Playback the previous flight path.

9. Flight Log System

Record flight details of each flight (eg. GPS latitude longitude altitude speed, battery level, IMU data). Log file can be exported to other app (eg. Dashware)

10. Flight Time Indicator

Remaining flight time and battery level indicator that display the estimated flight time based on the battery current discharge rate.

11. Flight Route Editor

Enter map edit mode and draw the flight route in advance before taking off and starting your mission.

12. Preflight Aircraft Status

13. Take photos

Two Finger Double Tap the video view to take photos. Taking photo is disabled during video recording.

14. Record video

One Finger Double Tap the video view to start and stop video recording.

Other Features:

Auto Recording starts the video record while taking off to avoid forgetting to turn on/off your

Toggle on/off grid line to help you set up Gold ratio of your image before capturing

Capturing image whenever your drone has moved a predefined horizontal and vertical distance.

Combine Home Point Option: use aircraft home point location as the primary home point while your Android device home point is not available.

WARNING: This App is only compatible with DJI Phantom 2 Vision+ / Vision. Please make sure you have the latest DJI firmware and Vision app installed.

Fail to follow the usage instruction to operate will cause unexpected damage and we accepts no liability for the damage.
