1.0 Tek AWG Connect Android Application

This application is intended for users who are away from the AWG instrument and want to load waveforms to the desired channel, save and open the AWG setup files and set the channel, clock, trigger parameters and select the Force Trigger functionality in the AWG. Additionally the users can play the waveforms from the Android App.

1.1 Features:

Control and Monitor AWG remotely

Two channels (CH1/CH2) supported

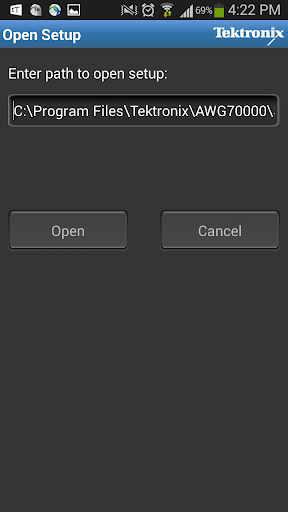

Open/Save the AWG setup files

Open and Assign a waveform file to the respective channels

Required channels can be switched on/off in the Application

Apply Force Trigger A and Force Trigger B functionality

Set the Run Mode to Continuous/Triggered/Trig’d Continuous

Play/Stop waveform in the application

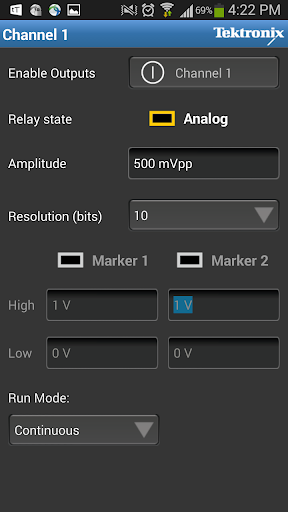

Control Channel 1 and Channel 2 Settings

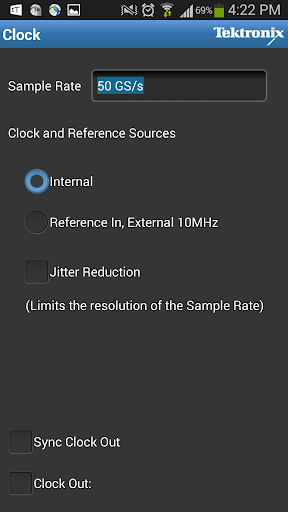

Control Clock Settings

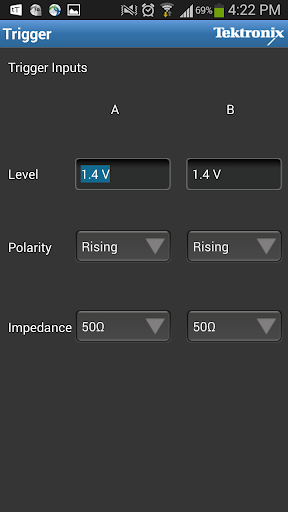

Control Trigger Settings

Advantages:

Control and Monitor AWG remotely

Supported AWG Series:

AWG70001A and AWG70002A

2.0 Installation Instructions:

Prerequisite:

1. The user needs to be on the same network to which the instrument is connected.

Cisco AnyConnect – This is required to connect to VPN of the AWG instrument for communicating between the AWG instrument and the mobile device.

2. AWG Android App installed on the mobile device.

2.1 Start the Raw Socket Server in the AWG instrument following the below steps.

Start TekVISA LAN Server Control from Start->All Programs->TekVISA->TekVISA LAN Server Control

In the Task tray right click on TekVISA LAN Server Control and select “Start Socket Server”

Note:

• Sometimes Windows doesn't allow Socket Server. Then you have to set firewall to allow Socket Server

• Go to Control Panel->System and Security->Windows Firewall->Allow a Program through windows firewall->

• Click on Allow another Program->Browse for RawSocketServer->click on Add.

Now you are ready for communicating with the AWG instrument from the Android device.

Click on AWG Android Application by clicking on the AWG icon in your phone and enter the AWG instrument IP address.After the instrument gets connected, start communicating with the instrument.

3. Android Version Supported

The app has been tested on Android mobile devices with Android Version 4.1 to 4.3

4. Resolution of Mobile Devices

The resolutions that the AWG Android Application will work is specified in the below Table. Please make sure that the AWG Android app is installed in the devices with the below specified resolutions.

Screen size (inches) Resolution

3.4 480 * 800
