TachyUsb|工具線上App不用買

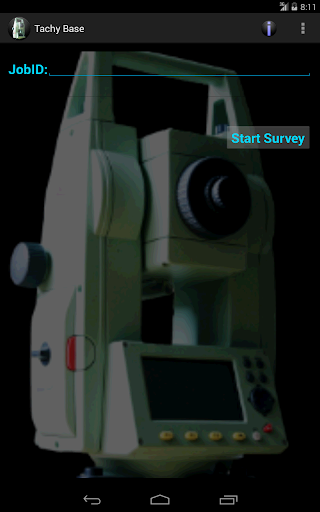

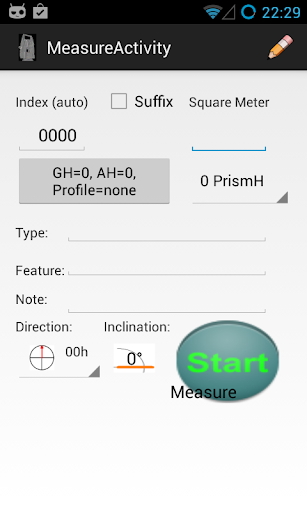

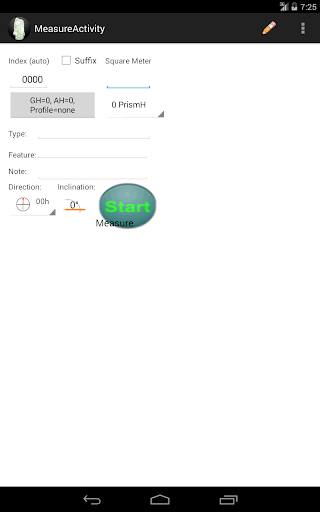

TachyUsb is an app for android 4.0 and later to be used with total stations. The program, written by the software engineer Thoralf Baum and the archaeologist Leif Steguweit, was specifically designed to help archaeologists and palaeontologists with data management in excavations. Data fields and notes are recorded together with each measure point in a convenient work flow.

PLEASE NOTE:

You need a special hardware to get this app connected to the total station.

See HARDWARE REQUIREMENTS below.

The program connects with several Leica total station models, see compatibility list below.

For more information, see the program documentation (www.tachyusb.de).

Your measure data can be viewed or exported via our WEB front end.

HARDWARE REQUIREMENTS:

Connection to the total station only via an AOA RS232 adapter, e.g. Digitus DA-70160 (DO NOT CONFUSE with usual RS232-USB adapters!). The AOA adapter needs an extra USB power supply (e.g. battery pack).

If you need assistance purchasing the hardware, please contact us: help@tachyusb.de.

COMPATIBILITY (this version):

Leica:

TCR110C,

TC302/ 303/ 305/ 307,

TCR302/ 303/ 305/ 307,

TC403/ 405/ 407/ 410,

TCR403/ 405/ 407/ 410,

TCR403/ 405/ 407 power,

TC702/ 703/ 705,

TCR702/ 703/ 705,

TC(R)702/ 703/ 705 auto

key words:

Tachy (= tachymeter), USB, AOA

June 2014, Thoralf Baum, Leif Steguweit
