TOFD WIZARD contains all calculations which are frequently required in industrial manual an automatic time of flight inspection.

This application turns your smart phone in a powerful calculator which simplifies setup of the inspection and the selection of the most appropriate setup for a complete TOFD inspection

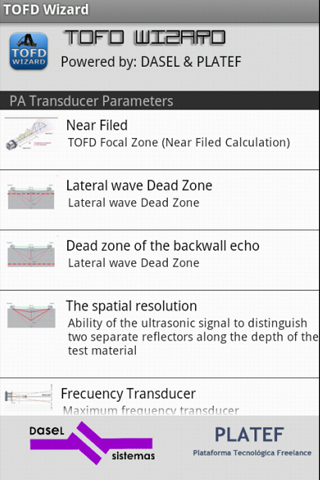

TOFD WIZARD allows to calculate the PCS calculation, beam divergence, time of flight, lateral and backwall dead zone, Complete wedge calculation, PRF calculation, Wheel diameter and encoder resolution for register acquisition. Maximum frequency inspection depending on diameter of the grain. Checking the Axial resolution and more

The application has also a complete Glossary and a database of material properties to look up the longitudinal and shear wave velocity as well as impedance, density and wavelength for a given frequency.

Main features

- References of constants and wavelength for more than 50 materials

- Wedge calculation principal parameters 45º 60º and 70º

- Transducer Setup

- Lateral wave dead zone

- PCS calculation

- The spatial resolution

- PRF determination

- Encoder setup

- Signal to Noise determination

- Axial resolution

- Reference Block
