RoboRemo is a Bluetooth / Internet / WiFi remote control app for Arduino, PIC, AVR, etc.

A remote device compatible with RoboRemo must contain a Bluetooth / Internet / WiFi adapter and a microcontroller programmed to interpret commands from RoboRemo.

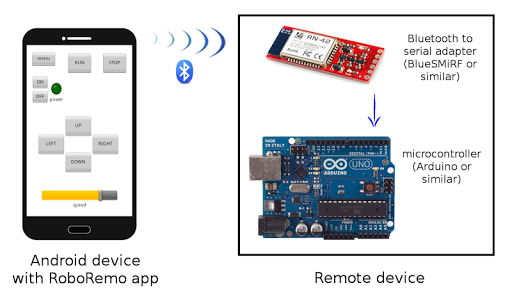

Bluetooth to Serial adapter examples: BlueSMiRF, HC-05, HC-06, BTM-222, etc.

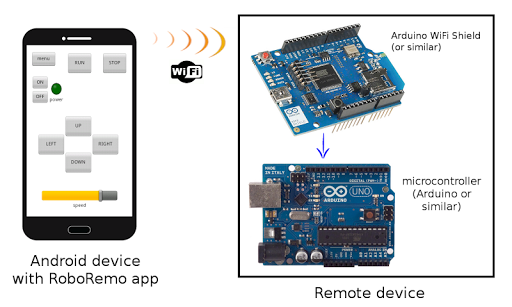

WiFi adapter examples: Arduino WiFi Shield, ESP8266, etc.

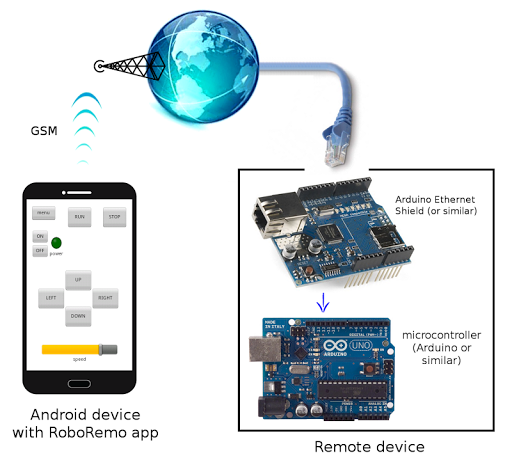

Ethernet adapter examples: Arduino Ethernet Shield, etc.

Microcontroller examples: Arduino, PIC16F84A, PIC16F628A, PIC16F877A, PIC18F4550, ATMEGA328, ATMEGA2560, etc.

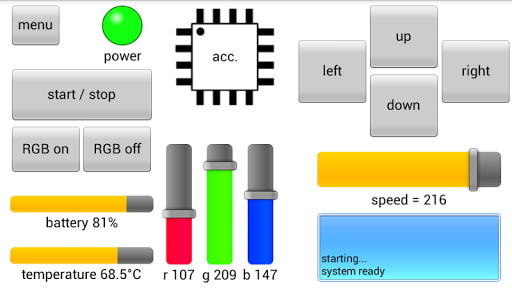

RoboRemo is fully customizable! You can add items, move them, resize them, set commands and other parameters.

Availabel items: button, slider, led, level indicator, text log, accelerometer sensor.

You can assign what command to send when you press a button, when you release it, when you move a slider, etc.

!!! Disclaimer: Don't use RoboRemo for life support systems or any other situations where system failure may affect user or environmental safety.

!!! Please try the RoboRemoFree first, to make sure it works with your device:

https://play.google.com/store/apps/details?id=com.hardcodedjoy.roboremofree

RoboRemoFree is 100% free, No ads, No collecting data.

All the commands from RoboRemo are text strings, ending with command ending which is LF character '\n' (hex code 0x0A) by default, but user can change it. For example if you configure a button to send “abc” when pressed, it will send “abc\n” if command ending is '\n' or it will send “abcqwerty123” if command ending is “qwerty123”. The command ending is used by the microcontroller program to know where each command ends.

RoboRemo also can receive commands for updating some interface items (for example you can have a battery level indicator to monitor the battery level of the remote device). These input commands also must end with command ending.

You can find RoboRemo app manual pdf at http://www.roboremo.com/downloads.html

RoboRemo site: http://www.roboremo.com/

Examples:

https://www.youtube.com/watch?v=3nzapmq3O9k

https://www.youtube.com/watch?v=2kne9jRlN4E

https://www.youtube.com/watch?v=9y7STayMUHE

https://www.youtube.com/watch?v=qVMGepcTjMk

https://www.youtube.com/watch?v=NP7Q5SJzw10

https://www.youtube.com/watch?v=x2RZ3z0essE

Permissions details:

modify / delete SD card contents, test access to protected storage -> Used to write interface files to the roboremo folder on the SD card when user chooses to export an interface.

Full network access -> Starting from app version 1.2, you can also connect to a remote device over Internet or WiFi. This is why it needs network access. App does not collect any data.

access Bluetooth settings, pair with Bluetooth devices -> Used to get the list of paired Bluetooth devices when you choose to connect over Bluetooth. Also, if you start the app with Bluetooth turned off, when you choose to connect over Bluetooth the app will ask if you want to turn the Bluetooth on, and will turn it on if you confirm.

What's new:

v1.4:

- auto connect option

- local actions for connecting and disconnecting by pressing buttons.

- local action “interface n” same as “iface n” where n is the interface number (0 to 7)

- removed ”exit” from menu (app can be closed by pressing back key).

- fixed the bug with “\r\n” string in interfaces.

- fixed a bug where app crashed if n was not an integer in “iface n” or “interface n” local action.

v1.5:

- option to change on and off commands for leds

- undo option in interface editor

- option to use the slider or level indicator value inside their labels

- made slider with "send when moved" send only when the value changes

- removed the dialog showing error when sending a non-integer value to a level indicator

- fixed a bug with processing received commands. Now if there are more items with same id, all of them will respond to it.
