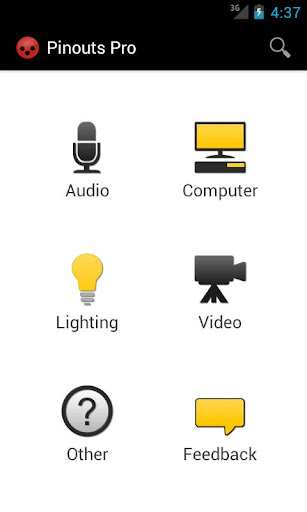

Pinouts is the complete collection of common audio / video / lighting / computer and other connector pinouts.
Additional features in Pinouts Pro:
✓ No Adverts
✓ Search feature
Audio Connectors
❖ TRS Jack (Balanced) / TS Jack (Unbalanced)
❖ DB25 Analog and AES Breakouts (Tascam / Digidesign and Yamaha)
❖ RCA - Phono
❖ XLR Balanced / XLR Unbalanced
❖ Tec Pro (Clear Com) Comms - circuit and headset

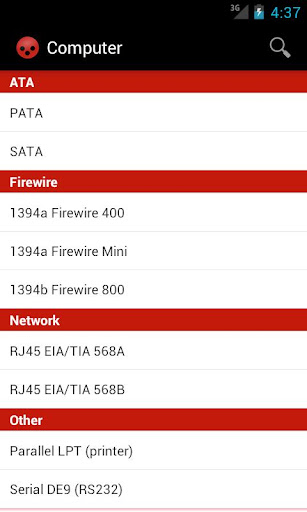

Computer Connectors
❖ Serial-ATA
❖ Parallel-ATA
❖ Firewire 1394a and 1394b
❖ RJ45 - TIA/EIA 568A / TIA/EIA 568B
❖ Parallel LPT (Printer)
❖ Serial DE9 (RS232)

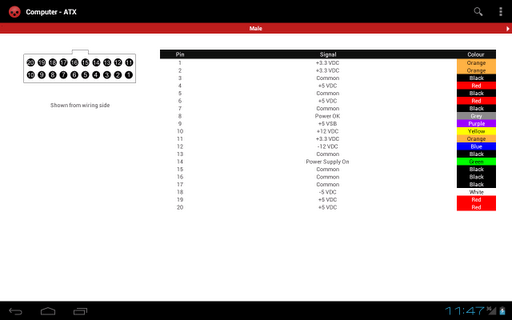

❖ ATX Power / Molex Power / SATA Power
❖ Magsafe (Mac Book power connector)

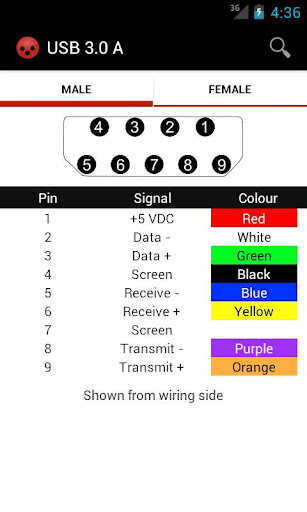

❖ USB A / B / Micro / Mini / 3.0A
Lighting Connectors
❖ DMX 3 and 5 pin
❖ Scroller
❖ Din 8 pin (analog control)
❖ ILDA (Laser Connector)
❖ Lectriflex / Harting
❖ RCA - Composite / Component
❖ Socapex
Video Connectors
❖ S-video
❖ Scart
❖ VGA
❖ DVI
❖ HDMI
Other
❖ Apple Dock (ipod - iphone - ipad)
❖ Cresnet
❖ Playstation Audio Visual
❖ XBOX 360 Audio Visual
❖ Wii Audio Visual
If you would like to request a new pinout or report a bug please use the in app feedback form, otherwise please leave a comment.
