Levels Made Easy is an app for Civil Engineers, Surveyors, Builders and anyone who works in the Construction Industry who may have the need to give or take levels using the traditional Dumpy Level (Site Level) and Staff.

It gets rid of the tedious task of 'reducing' the levels manually (or typing into excel) and as a result eliminates the risk of errors in the calculations.

It also stores Stations/Benchmarks as Known Levels so you will always have these values close at hand and will never need to search in a survey book for the Station values again.

Whether you are simply transferring a level from one point to another or setting a line of levels with 1000+ readings, Levels Made Easy will speed up the process so much that you’ll wonder how you ever managed without it.

Once you have finished your survey you can export the data to an excel file and send to your desktop for either record purposes or to use the reduced levels for further calculations.

Levels Made Easy will save a site engineer an unprecedented amount of time and will undoubtedly reduce the common and costly leveling errors made on construction sites.

HOW TO USE

Screen 1 – Job Selection Screen

Tap either ‘Add New Job’ (project) or select ‘Existing Job’

Tap on Job Name - Screen 2 will open automatically

Screen 2 – Survey Selection

Tap ‘Add Survey’ (or you can open a previous survey to view results if you wish) – Then enter Name, tap ‘Add’ and tap ‘Survey Name’ in list to select and open.

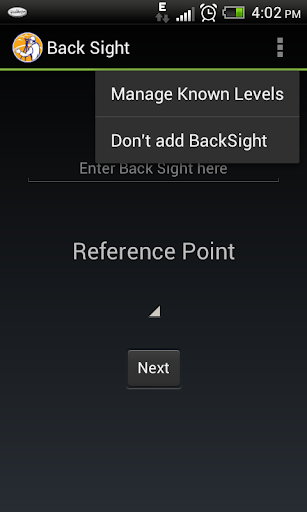

Screen 3 – Back Sight Screen

You will need to ‘Add Known Levels’ (Benchmarks or Datum) to the app before continuing.

Tap on Menu button, then tap ‘Manage Known Levels’

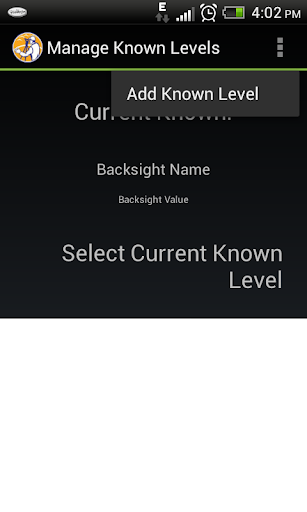

Screen 4 – Manage Known Levels Screen

Tap ‘Menu’, then ‘Add Known Level’

Screen 5 – Add Known Level Screen

Enter ‘Name’ and ‘Reduced Level’ of Known Level and tap ‘Save’. Auto Return to Screen 4. Tap the ‘Known Level’ you wish to use to select it and tap your phones ‘Back’ Button to return to the Back sight Screen.

Note - you may add numerous ‘Known Levels’ to use within this Job at future dates - LME stores Known Levels within a Job because levels relevant to one Job are usually not relevant to the next job

Screen 3 – Back Sight Screen

Note - You will see the Known Level you just selected in the Reference Point Drop down Box – you may change this to a different Known Level at this stage if you wish.

Take your reading, Enter it into box and tap ‘Next’

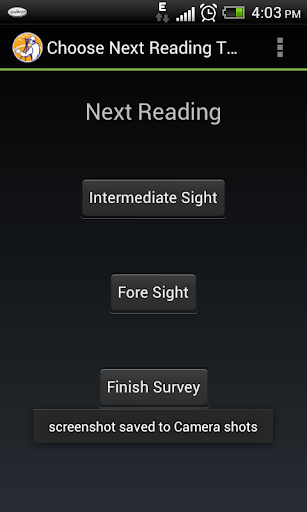

Screen 6 – Next Reading Screen

Tap the button to complete the next reading you wish to take

Screen 7a – Intermediate Sight

Enter reading and description then ‘Next’

Screen 7b – Fore Sight

Enter reading and description then ‘Next’

Enter BackSight on Back Sight Screen and Tap ‘Next. Do NOT change reference point here.

Continue taking and entering readings in this manner until your survey is complete. Then,

Tap ‘Finish Survey’ on the ‘Next Reading Screen’

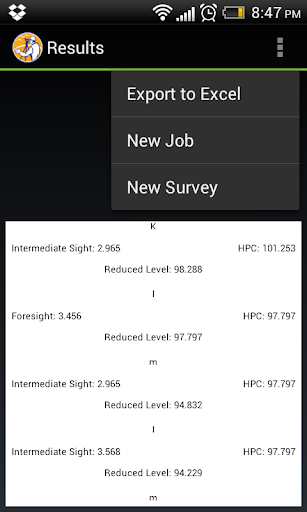

Screen 8 – Results

Results Screen Appears automatically.

View all results here or export to excel as follows

Tap ‘Menu’ & ‘Export to Excel’

Your Survey is now saved on your SD card – You may need a File Explorer app to view this depending on your phone.

By searching 'Levels Made Easy' on Facebook you can ‘Like’ the app and see more screenshots and their descriptions.

We hope you like our app and that you will find it very useful. If you have any suggestions on how it can be improved please leave a comment or email admin@appyengineer.com - constructive criticism is always welcome! :)

1 off payment version now also available on the Play Store
