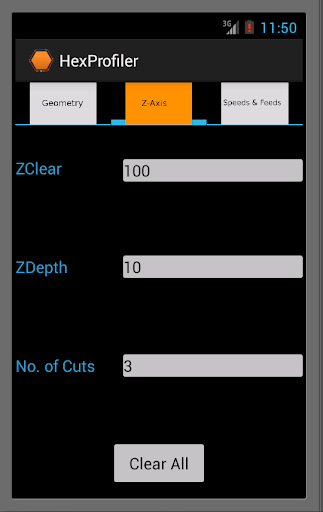

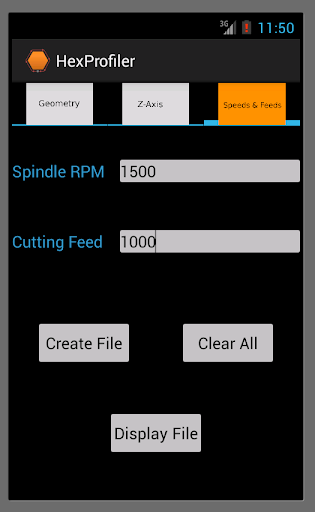

HexProfiler is an app for use on a 3-axis CNC vertical milling machine.The app calculates the toolpath that is required for milling a hexagon profile (eg. for bolts and nuts).The user inputs all the parameters and then presses the "Create File" button.The toolpath is created and stored in a text file named "Hex".This file is located in the "Documents" folder on the device file system.This file contains the g-code toolpath and can be sent to a PC via bluetooth,email,etc.From the PC the g-code file can be sent to the CNC Machine.The user has the option to edit the file extension from ".txt" to ".nc" as necessary.The toolpath file that is generated is for use on a CNC with a Fanuc controller.The overall effect is very similar to that of CAD/CAM systems,but limited to generating a hexagon toolpath.
免費玩HexProfiler APP玩免費
免費玩HexProfiler App
HexProfiler APP LOGO
HexProfiler APP QRCode
| 熱門國家 | 系統支援 | 版本 | 費用 | APP評分 | 上架日期 | 更新日期 |
|---|---|---|---|---|---|---|
| 未知 | Android Google Play | 1.1 App下載 | 免費 | 1970-01-01 | 2015-04-20 |
