FORD Transmission Troubleshooter and Reference - Runs on all Phones & Tablets

A reference and pictorial guide for automotive transmissions

(Including Ford/Lincoln/Mercury)

By MANDY CONCEPCION

This book is based on the "Automotive Transmission Troubleshooter" software by the same author. All similarities to this software package are intended. Both of these products are copyrighted by the author, Mandy Concepcion.

The beginnings of this book came about after the development of the "Transmission Troubleshooter" software package, which eventually became part of the "TransDoctor" PC based diagnostic equipment. Both of these related products, although meant for the professional side of the industry, left behind a huge arsenal of data that matched perfectly with the needs of the average consumer, DIY and mechanic aficionado. We assumed that his information, so far as the general public was concerned, did not necessitated to be part of a broad software package and therefore could be offered at a lower cost to the people. This book covers automotive Transmission diagnostics and electronic repair for domestic vehicles. The information was amassed during years of field work and research in the automotive industry. For this reason, the information is presented in a direct, hands on approach and skips the basic operation of automotive transmissions. If you're trying to discern the basics of automotive automatic transmissions, then there are other works that could help you do that. This book is meant to be used during real-life repair situations and it exposes you to exactly what you need to know to solve or get an in-depth knowledge of a specific problem. Various concepts are covered such as Transmission DTCs or trouble codes, Transmission ID, shift solenoid locations, component locations, electrical and wiring diagrams and finally measurement values for voltage and resistance. We hope you enjoy reading this work to gain knowledge and solve specific problem. So, without further ado, enjoy…

About the author:

Mandy Concepcion has worked in the automotive field for over 21 years. He holds an Associates Degree in Applied Electronics Engineering as well as an ASE L1 certification. For the past 12 years he has been exclusively involved in the diagnosis of all the different electronic systems found in today’s vehicles. It is here where he draws extensive practical knowledge from his experience and hopes to convey it in this book.

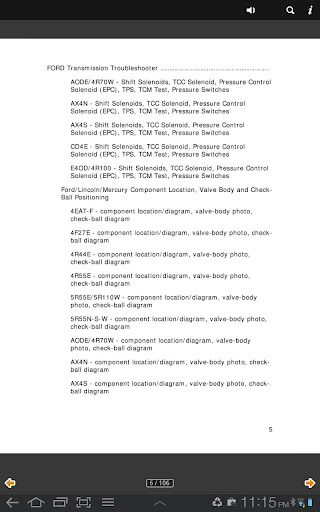

Table of Contents

OBD-2 - Generic OBD-2 Transmission DTC (code) Listing

Ford/Lincoln/Mercury

Ford/Lincoln/Mercury Transmission Application

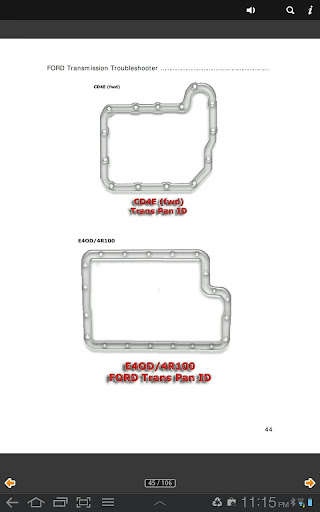

4EAT-F - 4F27E - 4R44E - 4R55E - 5R55E/5R110W - 5R55N-S-W - AODE/4R70W - AX4N - AX4S - CD4E - E4OD/4R100 - - Oil pan identification

Ford/Lincoln/Mercury Shift Solenoids and Electrical Component Testing

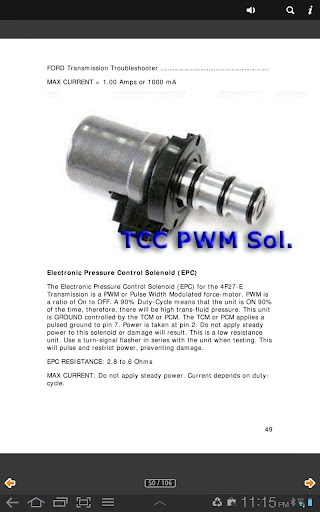

4EAT-F - 4F27E - 4R44E - 4R55E - 5R55E/5R110W - 5R55N-S-W - AODE/4R70W - AX4N - AX4S - CD4E - E4OD/4R100 - - Shift Solenoids, TCC Solenoid, Pressure Control Solenoid (EPC), TPS, TCM Test, Pressure Switches

Ford/Lincoln/Mercury Component Location, Valve Body and Check-Ball Positioning

4EAT-F - 4F27E - 4R44E - 4R55E - 5R55E/5R110W - 5R55N-S-W - AODE/4R70W - AX4N - AX4S - CD4E - E4OD/4R100 - component location/diagram, valve-body photo, check-ball diagram

Ford/Lincoln/Mercury Shifting Truth-Tables

4EAT-F, 4F27E, 4R44E, 4R55E, 5R55E/5R110W, 5R55N-S-W, AODE/4R70W, AX4N, AX4S, CD4E, E4OD/4R100 - Shifting truth table or shift combination

Ford/Lincoln/Mercury Wiring Diagrams
