BT Terminal/Graphics Full|工具線上App不用買

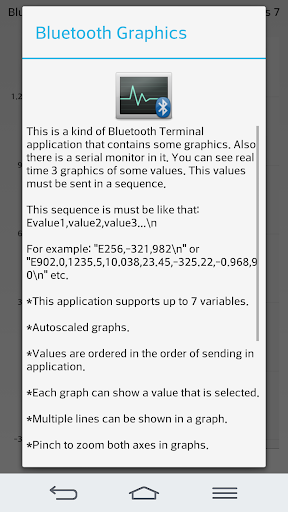

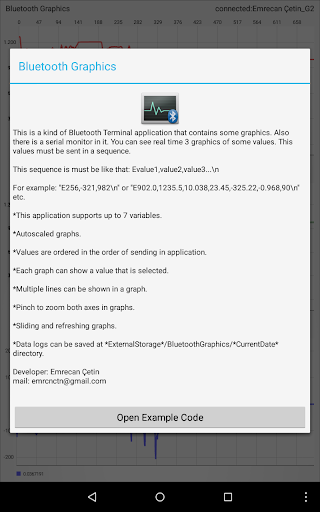

This is a kind of Bluetooth Terminal application that contains some graphics.

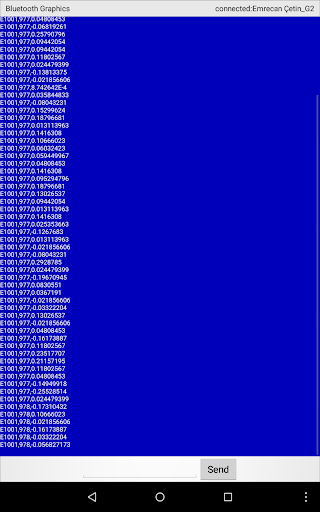

Also there is a serial monitor in it.

You can see real time 7 graphics of some values.

This values must be sent in a sequence.

This sequence must be like that: Evalue1,value2,value3...\n

For example: "E256,-321,982\n" or "E902,1235,10,23,-325,-1240,90\n" etc.

*Data separator is customizable

*This application supports up to 7 variables.

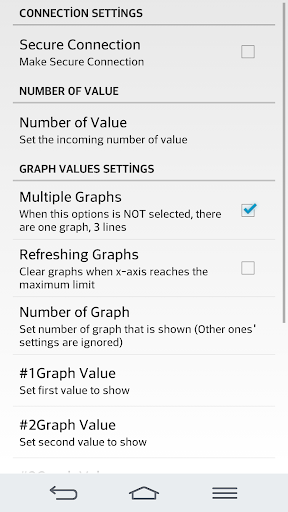

*You can set graphics' maximum and minimum values.

*Autoscaled graphs.

*Values are ordered in the order of sending in application.

*Each graph can show a value that is selected.

*You can set number of graphics that is shown.

*Multiple lines can be shown in a graph.

*Pinch to zoom both axes in graphs.

*Sliding and refreshing graphs.

*Data logs can be saved at *ExternalStorage*/BluetoothGraphics/log*count* directory

MPAndroidChart library is used.

Keywords: robotics, arduino, serial communication, graphs, bluetooth, terminal
