The ActiveOBD offers a free and simple multi functional information display for your Subaru vehicle. Despite the initial stage of its development, the application is able to reveal some sensitive information missing on the display you might already have.

The ActiveOBD fetches the information directly from your vehicle via the OBD port and operates completely independently from the multi function display of your vehicle so you're absolutely free to use both in parallel.

Requirements:

- Subaru vehicle MY 2012+ (OBD CAN communication protocol)

- ELM327 Bluetooth adapter v1.4-v2.1 (the FAKE v2.1 is not supported); or OBDLink LX Bluetooth r1.2 (obdlink.com/lxbt/)

BETA testing & problem reporting: https://plus.google.com/communities/102216074960759727645

AWD tab

- front wheels position

- Torque split front-rear (Lineartronic Active Torque Split AWD; solenoid duty) *

- front-rear Slit (over-rotation)

Also:

- Coolant temperature

- Engine oil temperature

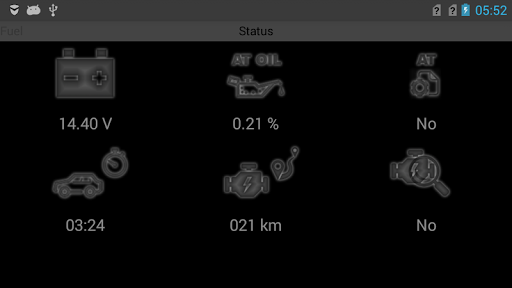

Info tabs

- Automatic transmission (AT / CVT) Oil deterioration degree

- Fuel Level (percent of total tank capacity) **

- alternative Fuel Consumption counter since last refill ***

and more.

Long-click on info item icon to get a description.

Trouble Codes tab

- Diagnostic Trouble Codes (OBD DTC) with Subaru-specific description

- clearing trouble codes

Menu is accessible an Android-way or by the title bar clicking.

Notes:

* The Subaru AWD system has some hydraulic pressure active constantly providing about 5% torque transferring from front to rear. Further torque distribution is done dynamically (on demand), ActiveOBD shows this dynamic value.

** The fuel level is a subject for fluctuations. The application needs about 5-7 minutes of continuous running before the fuel level value can be displayed.

*** A standard fuel consumption calculation approach is based on fuel amount counter at the time of its consumption. ActiveOBD offers an alternative – a calculation based on mileage and fuel level (in percent). According to the current implementation the counter is being reset on refill (done with ignition switched off), just open the State mode after refilling – the fuel consumption counter should reset automatically.

You have to pair with the ELM327 device before using this application, Google Nexus guide (Pair with a Bluetooth device) :

https://support.google.com/nexus/answer/2819579?hl=en
