ALDLdroid is an application for OBD1 GM (ALDL) ECMs. It is currently compatible with both 160 baud and 8192 baud protocols.

It is compatible with TunerPro files (ADX), just make sure you have the ADX file matching your ECM code mask before purchasing the app. You will also need to make sure your ADX file is NOT encrypted as the app cannot read those. You will have to copy your ADX file to the ADX directory of the ALDLdroid folder on the SD card once you've started the app for the first time and the folders structure has been created. Verify that your Android device has external storage capability (most likely SD card).

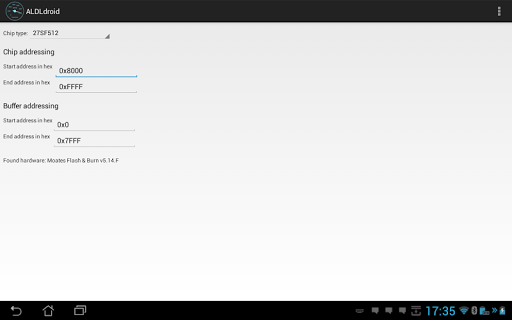

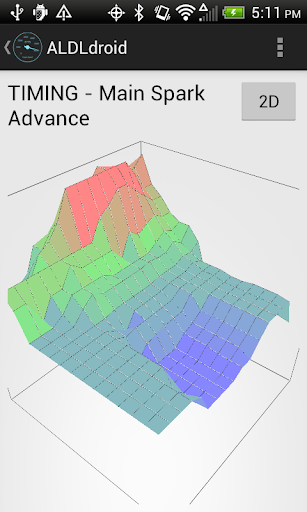

There is also a tuning section that uses TunerPro files as well (XDF) to allow editing BIN files. Real-time tuning is currently supported. I got very little feedback on it tho so there might be a few issues here and there. Otherwise it does supports the Moates Ostrich and the Moates AutoProm hardware. Chip programming is also possible using the Moates BURN1/BURN2 hardware.

Currently, connection to the ECM can be made with Bluetooth or USB (FTDI). Make sure that your Android device support one of these two connection methods. USB host mode is only available on Android 3.0+ and not all devices support it. Note that having a USB port on your Android device doesn't automatically means it support USB host mode.

ALDL adapters to connect the application to your vehicule ECM can be purchased here if you don't already have one:

- Bluetooth version: http://www.reddevilriver.com/ALDL_Bluetooth.php

- USB version: http://www.reddevilriver.com/aldl.html

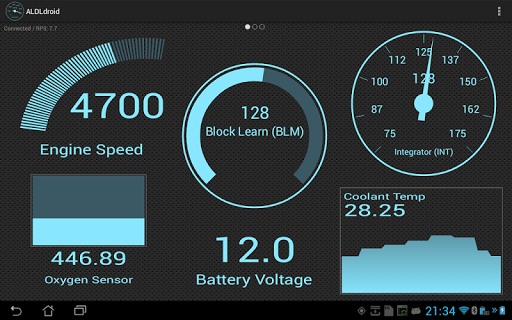

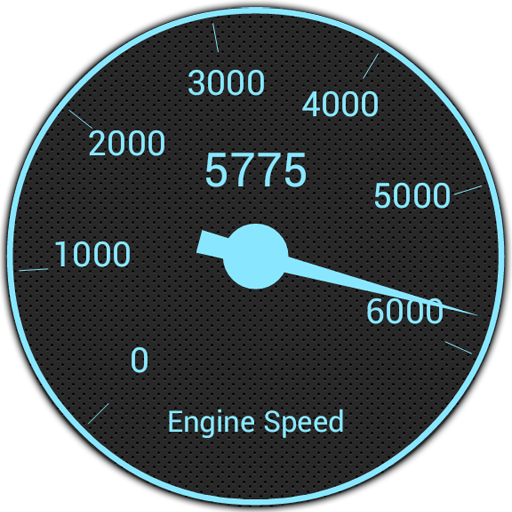

By double tapping on any page of the dashboard, you enter the dashboard edit mode. That mode allow full customization (add/edit/delete) of the dashboard indicators. You can easily drag indicators where you want them. You can also add indicators in the format you want: gauge, basic readout, bar graph or histogram. Alarm can be set once your specified value has been entered to trigger an alarm, either the indicator can turn red and/or the Android app can vibrate.

No refund can be made after the 15 minutes allowed by Google Play. It would probably be a good idea to check with online communities that use the same ECM as you if they had success with this app before purchasing.

If you're running into any issue with the app, don't panic, just email me and I will try my best to help. Don't leave a bad review until you gave me a chance to help :) Note that I might not have access to your exact setup (Car ECM, Android device, etc) so please provide as much information as possible.

I'm not responsible for any damage that could be caused by this app to your vehicle or anything else (although I really don't see how anything bad could happen). Buy and use at your own risks. Drive safe!
